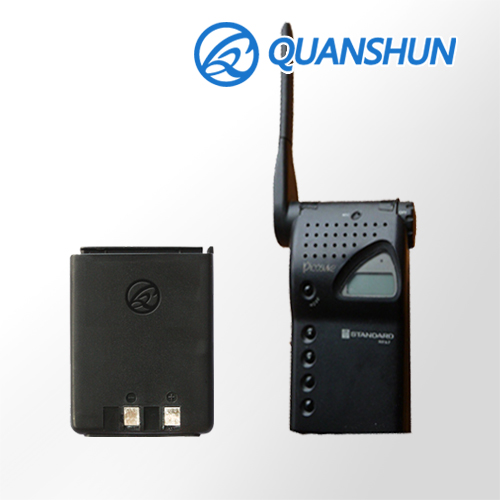

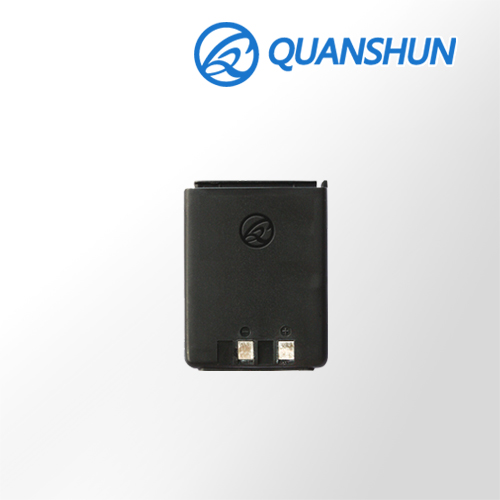

QDB-152 Two-way Radio Ni-Cd & Ni-MH Batteries for Standard CNB152 Fit in AH-50 C228A C528 C528A C558 C628 HX190 HX240 HX620

Manufacturer Model	QDB-152
Brand Name	QuanShun
Manufacturer	Quanshun Communication Technology Co., Ltd.
Place of origin	China
Original Brand	STANDARD
Original Model	CNB152
Compatible Radios	C150, C158, C228, C528, C628, C558, C28A, HX240, HX520, HX620, AT200, AT201, ADIAT200, ADIAT201, ADIAT400, ADIAT401, HX158, HX190, HX228, HX240, HX260, HXC150, HX450, HX520, HX620, HXC528, HX558, HX628, ADIAT200, ADIAT 201, ADIAT400, ADIAT401, ADOAT28A, REXON C228A, C528A, C628A, AH-50
Compatible Chargers	QSC-301
Nominal Voltage	9.6V
Chemistry	Nickel Cadmium & Nickel Metal Hydride
Nominal Capacity	1100mAh
Weight	160.0g
Extra Capacity	600, 1100mAh
Cell Used	Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK
Dimensions	775532(mm)
Color	Black
Housing Material	PC+ABS+Fireproofing Material
Assembly Construction	Housing Bonded by Ultrasonic
Contacts	Gold or Silver Plating
Circuit Connection	With PCB or FPCB
Belt Clip	N/A
Certifications	CE, Fcc, RoHS, UN38.3, MSDS
Overcharge Test	Passed
Thermal Test	Passed
Vibration Test	Passed
Shock Test	Passed
External Short Circuit Test	Passed
Altitude Simulation Test	Passed
Waterproof	Not
Working Temperature	0-60℃
ChargingTemperature	10-40℃
Storage Temperature	20~20°C(with in 1year) 20~30°C(with in 3month) 20~40°C(with in 1month) 20~50°C(with in 1week)
Cycle Life	500 Cycles
Warranty	18 Months

*Specification subject to change without notice .
