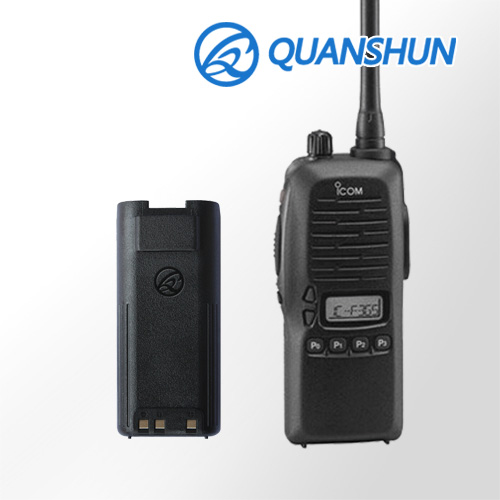

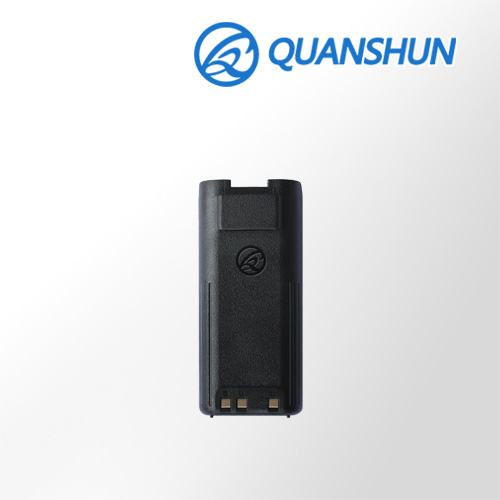

QIB-180L Two-way Radio Li-Ion Batteries fro Icom BJ-180-L Fit in IC-V8 IC-V82 IC-U82 IC-A24 IC-A6 IC-T3H IC-F3GT IC-F3GS IC-F4GT IC-F4GS IC-F11 IC-F11S IC-12S IC-F21 IC-F21S IC-F22S IC-F40GT IC-F40GS IC-F31GT IC-F31GS ICF41GT IC-F41GS IC-F21BR IC-F21GM
| Manufacturer Model |
QIB-180L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Icom |
| Original Model |
BJ-180-L |
| Compatible Radios |
IC-V8, IC-V82, IC-U82, IC-A24, IC-A6, IC-T3H, IC-F3GT, IC-F3GS, IC-F4GT, IC-F4GS, IC-F11, IC-F11S, IC-12S, IC-F21, IC-F21S, IC-F22S, IC-F40GT, IC-F40GS, IC-F31GT, IC-F31GS, IC-F41GT, IC-F41GS IC-F21BR, IC-F21GM |
| Compatible Chargers |
BJ-700,BC-137,BC-144N |
| Nominal Voltage |
7.4V |
| Chemistry |
Lithium |
| Nominal Capacity |
1800mAh |
| Weight |
150g |
| Extra Capacity |
1300,2000mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
120*54*21(mm) |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
QIL180 |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
×Specification subject to change without notice.
Fit in : IC-V8 IC-V82 IC-U82 IC-A24 IC-A6 IC-T3H IC-F3GT IC-F3GS IC-F4GT IC-F4GS IC-F11 IC-F11S IC-12S IC-F21 IC-F21S IC-F22S IC-F40GT IC-F40GS IC-F31GT IC-F31GS IC-F41GT IC-F41GS IC-F21BR IC-F21GM
Compatible for Charger :BJ-700 BC-137 BC-144N
