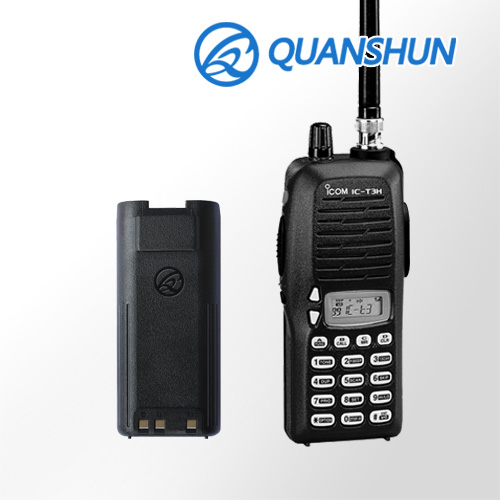

QIB-209 Two-way Radio Ni-Cd & Ni-MH Batteries for Icom BP-209 Fit in IC-V8 IC-V82 IC-U82 IC-A24 IC-A6 IC-T3H IC-F3GT IC-F3GS IC-F4GT IC-F4GS IC-F11 IC-F11S IC-12S IC-F21 IC-F21S IC-F22S IC-F40GT IC-F40GS IC-F31GT IC-F31GS ICF41GT IC-F41GS IC-F21BR IC-F21GM
Manufacturer Model |
QIB-209 |
Brand Name |
QuanShun |
Manufacturer |
Quanshun Communication Technology Co., Ltd. |
Place of origin |
China |
Original Brand |
Icom |
Original Model |
BP-209,BP-210,BP-222 |
Compatible Radios |
IC-V8, IC-V82, IC-U82, IC-A24, IC-A6, IC-T3H, IC-F3GT, IC-F3GS, IC-F4GT, IC-F4GS, IC-F11, IC-F11S, IC-12S, IC-F21, IC-F21S, IC-F22S, IC-F40GT, IC-F40GS, IC-F31GT, IC-F31GS, IC-F41GT, IC-F41GS, IC-F21BR, IC-F21GM |
Compatible Chargers |
BC-137,BC-144N |
Nominal Voltage |
7.2V |
Chemistry |
Nickel-Metal Hydride & Nickel-Cadmium |
Nominal Capacity |
1100mAh |
Weight |
120g |
Extra Capacity |
1300, 1500,1800,2000mAh |
Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
Dimensions |
120*54*21(mm) |
Color |
Black |
Housing Materical |
PC+ABS+Fireproofing Material |
Assembly Construction |
Housing Bonded by Ultrasonic |
Contacts |
Gold or Silver Plating |
Circuit Connection |
With PCB or FPCB |
Belt Clip |
QIL195 |
Certifications |
CE, Fcc, RoHS, UN38.3, MSDS |
Overcharge Test |
Passed |
Thermal Test |
Passed |
Vibration Test |
Passed |
Shock Test |
Passed |
External Short Circuit Test |
Passed |
Altitude Simulation Test |
Passed |
Waterproof |
Not |
Working Temperature |
0-60℃ |
ChargingTemperature |
10-40℃ |
Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
Cycle Life |
500 Cycles |
Warranty |
18 Month |
*Specification subject to change without notice.
![](/uploadfiles/cc201512221509229924.jpg)
![](/uploadfiles/cc201512221402232950.jpg)
![](/uploadfiles/cc201512221509531944.jpg)

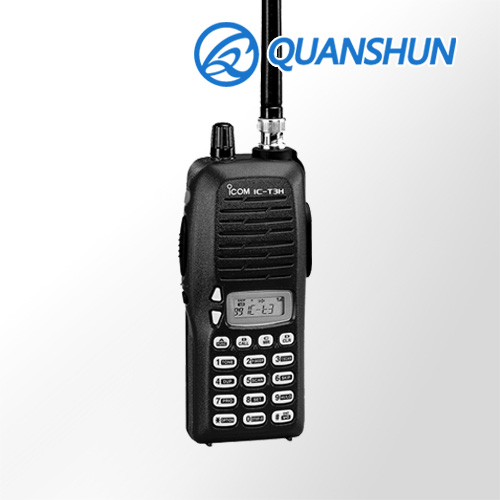

Fit in :IC-V8 IC-V82 IC-U82 IC-A24 IC-A6 IC-T3H IC-F3GT IC-F3GS IC-F4GT IC-F4GS IC-F11 IC-F11S IC-12S IC-F21 IC-F21S IC-F22S IC-F40GT IC-F40GS IC-F31GT IC-F31GS ICF41GT IC-F41GS IC-F21BR IC-F21GM
Compatibel for Charger :BC-137 BC-144N
