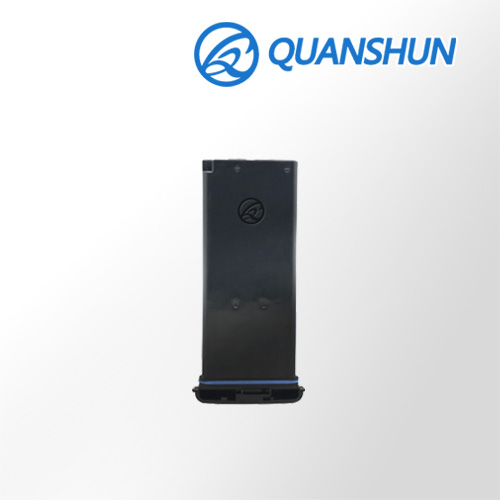

QIB-196 Two-way Radio Ni-Cd & Ni-MH Batteries for Icom BP-196 Fit in IC-A4 IC-F3 IC-F3GT IC-F3S IC-F4 IC-F4S IC-T2A IC-T2E IC-F3X IC-T2H IC-F4TR
| Manufacturer Model |
QIB-224 |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Icom |
| Original Model |
BP-224 |
| Compatible Radios |
IC-M32 |
| Compatible Chargers |
BC-150 |
| Nominal Voltage |
7.2V |
| Chemistry |
Ni-MH & Ni-Cd |
| Nominal Capacity |
980mAh |
| Weight |
100g |
| Extra Capacity |
1100mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
122.4x58.2x19.6 mm |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE Fcc RoHS UN38.3 MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
*Specification subject to change without notice.

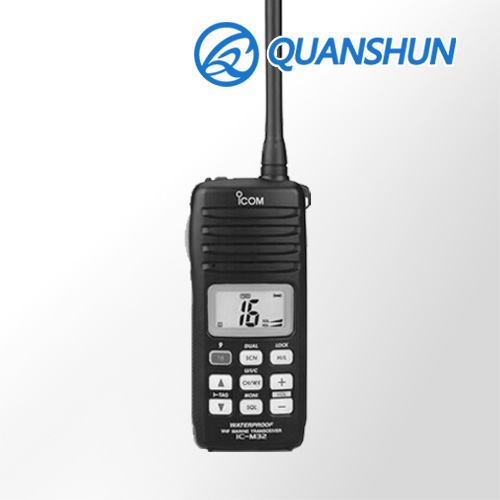

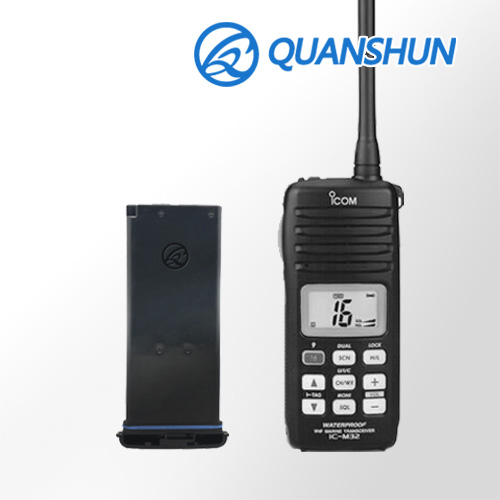

Fit in :IC-M32
Compatible for Charger :BC-150
