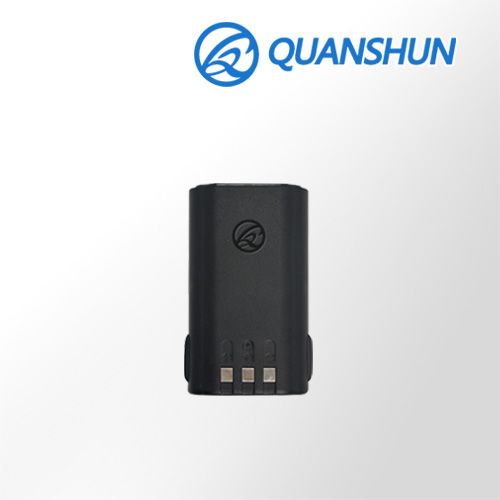

QIB-231L Two-way Radio Li-Ion & Li-Poly Batteries for Icom BP-231N Fit in IC-F15S IC-F24 IC-F25S IC-F25SR IC-F26S IC-F33GS IC-F33GT IC-F34GS IC-F34GT IC-F43GS IC-F43GT IC-F43TR IC-F44GS IC-F3021S IC-F3021T
| Manufacturer Model |
QIB-231L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Icom |
| Original Model |
BP-231N |
| Compatible Radios |
IC-F4062S |
| Compatible Chargers |
BC-160 BC-160N |
| Nominal Voltage |
7.4V |
| Chemisitry |
Lithium |
| Nominal Capacity |
1300mAh |
| Weight |
128g |
| Extra Capacity |
1100,1300,1500mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
91*56*17mm |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE Fcc RoHS UN38.3 MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
*Specification subject to change without notice.
Fit in :IC-F15S IC-F24 IC-F25S IC-F25SR IC-F26S IC-F33GS IC-F33GT IC-F34GS IC-F34GT IC-F43GS IC-F43GT IC-F43TR IC-F44GS IC-F3021S IC-F3021T
Compatible for charger :BC-160 BC-160N
