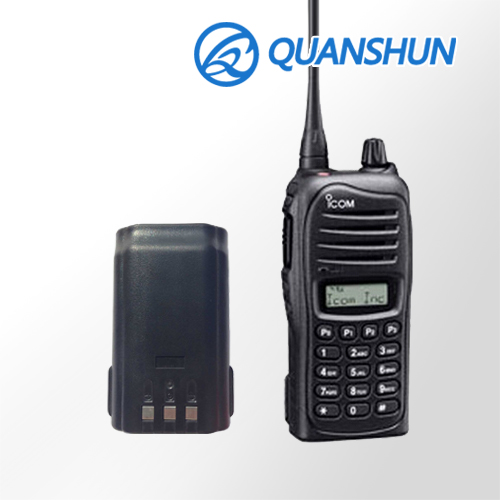

QIB-232L-WP Two-way Radio Li-Ion & Li-Poly Batteries for Icom BP-232WP Fit in IC-F33GT IC-F34GS IC-F34GT IC-F43GS IC-F43GT IC-F43TR IC-F44GS IC-F44GT IC-F3021S IC-F3021T IC-F3022S IC-F3022T IC-F3023S IC-F3023T IC-F3061S
| Manufacturer Model |
QIB-232L-WP |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Icom |
| Original Model |
BP-232WP |
| Compatible Radios |
IC-F3161DT/DS IC-F4161DT/DS IC-F3162T/S IC-F4162T/S IC-F3163T/S IC-F4163T/S IC-F3061T/S IC-F4061T/S ICF3061T/ S IC-F4061T/S IC-F3062T/S IC-F4062T/S ICF3063T/S IC-F4063T/S IC-F33GT/GS IC-F43GT/GS ICF34GT/GS IC-F44GT/GS IC-F3021T/S IC-F4021T/S ICF3022T/S IC-F4022T/S IC-F3023T/S IC-F4023T/S IC-F14/S IC-F24/S IC-F15/S IC-F25/S IC-F43TR IC-F4029SDR ICF25SR IC-A14/S IC-36FI IC-F14 IC-F15 IC-F24 IC-F25 IC-26S IC-F43TR
|
| Compatible Chargers |
BC-160 BC-160N |
| Nominal Voltage |
7.4V |
| Chemisitry |
Lithium |
| Nominal Capacity |
2200mAh |
| Weight |
180g |
| Extra Capacity |
2200mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
91*56*21mm |
| Color |
Black |
| Housing Materical |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE Fcc RoHS UN38.3 MSDS |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Month |
* Specification subject to change without notice .
Fit in :IC-F33GT IC-F34GS IC-F34GT IC-F43GS IC-F43GT IC-F43TR IC-F44GS IC-F44GT IC-F3021S IC-F3021T IC-F3022S IC-F3022T IC-F3023S IC-F3023T IC-F3061S
Compatible for Chargers:BC-160 BC-160N
