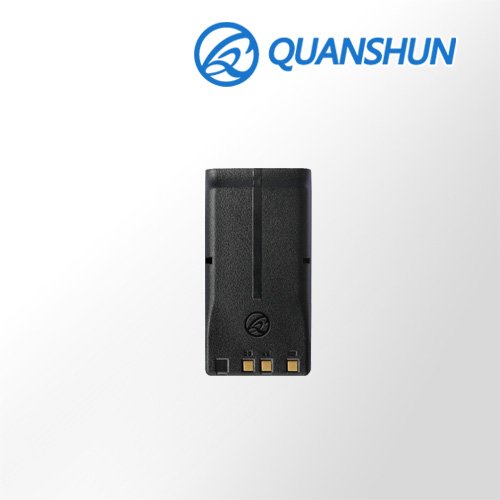

QKB-17L two way radio Li-Ion battery for Kenwood KNB-17L fits in TK-280 TK-290 TK-380 TK-390 TK-385 TK-480 TK-481
| Manufacturer Model |
QKB-17L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Kenwood |
| Original Model |
KNB-17L |
| Compatible Radios |
for Kenwood TK-280 TK-290 TK-380 TK-390 TK-385 TK-480 TK-481 |
| Compatible Charger |
KSC-503 |
| Nominal Voltage |
7.4V |
| Chemistry |
Lithium |
| Nominal Capacity |
2200mAh |
| Weight |
180.0g |
| Extra Capacity |
2500 / 3000 mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
111*58*21 (mm) |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specification subject to change without notice.

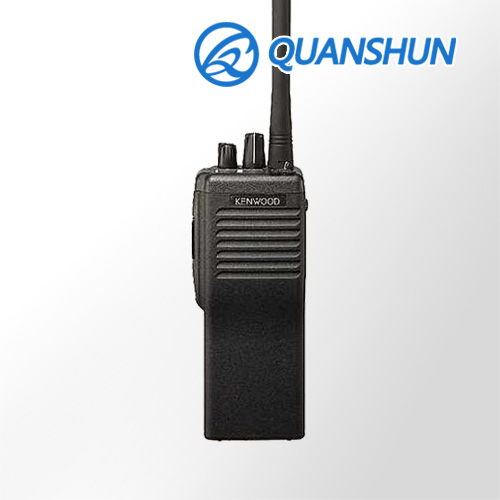

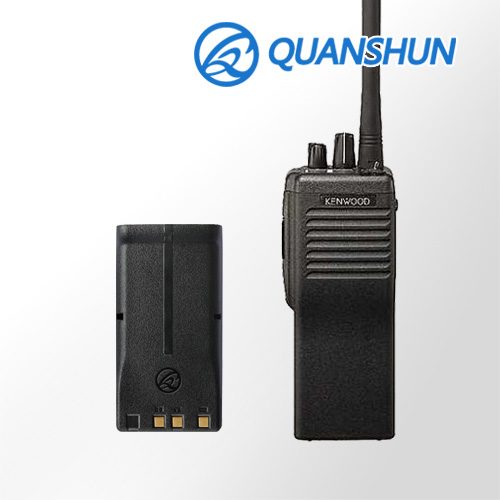

Compatible radios: for Kenwood TK-280 TK-290 TK-380 TK-390 TK-385 TK-480 TK-481
Compatible charger: KSC-503
