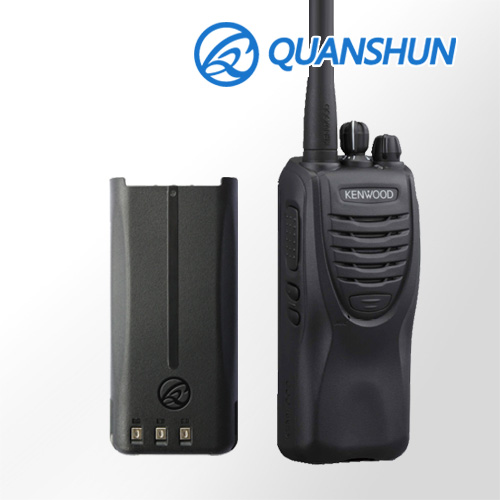

QKB-45L two way radio Li-Ion battery for Kenwood KNB-45L fits in TK-2200 TK-2201 TK-2202 TK-2206 TK-2207 TK-2207G TK-2212 TK-2217 TK-2302P TK-2306 TK-2307 TK-3200 TK-3201 TK-3202 TK-3206 TK-3207G TK-3212 TK-3217 TK-3302P TK-3306 TK-3307
| Manufacturer Model |
QKB-45L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Kenwood |
| Original Model |
KNB-45L |
| Compatible Radio |
for Kenwood TK-2200 TK-2201 TK-2202 TK-2206 TK-2207 TK-2207G TK-2212 TK-2217 TK-2302P TK-2306 TK-2307 TK-3200 TK-3201 TK-3202 TK-3206 TK-3207G TK-3212 TK-3217 TK-3302P TK-3306 TK-3307 |
| Compatible Chargers |
KSC-35, KSC-35S, KSC-43 |
| Nominal Voltage |
7.4V |
| Chemistry |
Lithium |
| Nominal Capacity |
1800 mAh |
| Weight |
150.0g |
| Extra Capacity |
1300 / 2000 mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
115 * 54 * 18 (mm) |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specification subject to change without notice.
Compatible Radios: for Kenwood TK-2200 TK-2201 TK-2202 TK-2206 TK-2207 TK-2207G TK-2212 TK-2217 TK-2302P TK-2306 TK-2307 TK-3200 TK-3201 TK-3202 TK-3206 TK-3207G TK-3212 TK-3217 TK-3302P TK-3306 TK-3307
Compatible Chargers: KSC-35, KSC-35S, KSC-43
