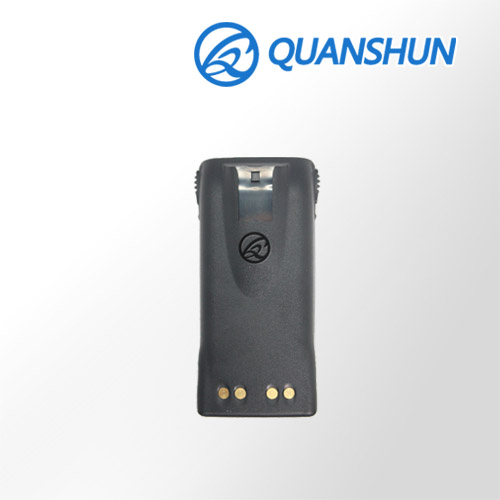

QMB4003L Two-way Radio Li-Ion for Motorola HNN4003 Fit for GP280 GP240 ATS2500 PTX780 MTX850LS HT750 HT1250 HT1250LS HT1550XLS GP140
| Manufacturer Model |
QMB4003L |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Motorola |
| Original Model |
HNN4003 |
| Compatible Radio |
for ATS2500 HT750 HT1250 HT1250LS HT1550XLS GP140 GP240 GP280 GP328 GP329 GP338 GP339 GP360 GP380 GP540 GP580 GP680 GP1280 MTX850 MTX850LS MT8250LS MTX900 MTX9250 MTX950 MTX960 PR860 PRO5150 PRO5350 PRO5450 PRO5750 PRO7150 PRO7350 PRO7750 PTX700 PTX760 PTX780 |
| Compatible Chargers |
WPLN4199 HTN9000 MDHTN3001 PMLN5196 |
| Nominal Voltage |
7.4V |
| Chemistry |
Li-ion/Li-poly |
| Nominal Capacity |
2200mAh |
| Weight |
180.0g |
| Extra Capacity |
2200/2500/3000mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
124*59*26mm) |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
QML9844 QML9714 |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specifications subject to change without notice.
Fit in GP280 ATS2500 PTX780 MTX850LS HT750 HT1250 HT1250LS HT1550XLS GP140 GP240
Compatiable for charger: WPLN4199 HTN9000 MDHTN3001 PMLN5196
