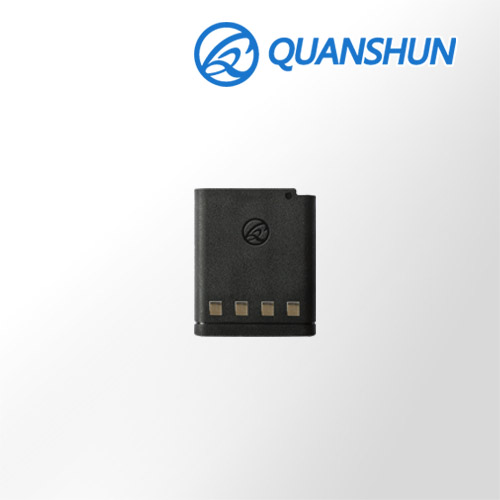

QMB5414 Two-way Radio Ni-Cd&Ni-Mh for Motorola NTN5414BR Fit for P210 HT600 MT1000 HT800 MTX800 MTX900 P200 MTX888 B6
| Manufacturer Model |
QMB5414 |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Motorola |
| Original Model |
NTN5414BR |
| Compatible Radio |
for MT1000 HT800 HT600 MTX800 MTX900 P200 P210 MTX888 B6 |
| Compatible Chargers |
NTN4633 |
| Nominal Voltage |
9.6V |
| Chemistry |
Ni-MH/Ni-Cd |
| Nominal Capacity |
1200mAh |
| Weight |
180.0g |
| Extra Capacity |
1200/1800/2100mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
81*67*36(mm) |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
Not |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specifications subject to change without notice.
Fit in P210 HT600 MT1000 HT800 MTX800 MTX900 P200 MTX888 B6
Compatiable for charger: NTN4633
