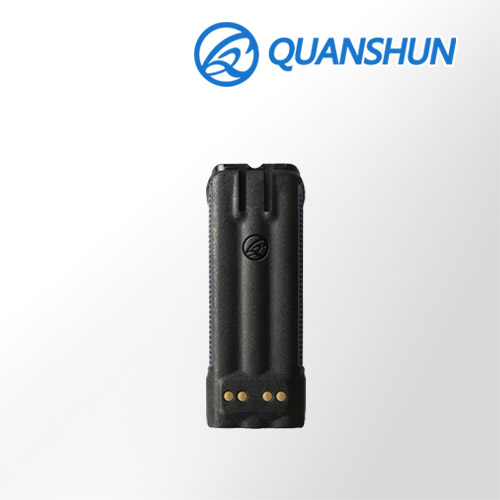

QMB8294 Two-way Radio Ni-MH/Ni-Cd for Motorola NTN8251AR Fit for MTP300 MTP200 XTS5000 XTS3500 XTS3000 XT5300 XTS4250
| Manufacturer Model |
QMB8294 |
| Brand Name |
QuanShun |
| Manufacturer |
Quanshun Communication Technology Co., Ltd. |
| Place of origin |
China |
| Original Brand |
Motorola |
| Original Model |
NTN8294BR NNTN4435 |
| Compatible Radio |
XTS5000 XTS3500 XTS3000 XT5300 XTS4250 MTP200 MTP300 |
| Compatible Chargers |
NTN7209 NTN1171 |
| Nominal Voltage |
7.2V |
| Chemistry |
Ni-MH/Ni-Cd |
| Nominal Capacity |
1200mAh |
| Weight |
180.0g |
| Extra Capacity |
1200/1800/2100/2700mAh |
| Cell Used |
Panasonic, SANYO, SAMSUNG, YUASA, GP, BYD, BAK |
| Dimensions |
157x59x24 |
| Color |
Black |
| Housing Material |
PC+ABS+Fireproofing Material |
| Assembly Construction |
Housing Bonded by Ultrasonic |
| Contacts |
Gold or Silver Plating |
| Circuit Connection |
With PCB or FPCB |
| Belt Clip |
QML8266 |
| Certifications |
CE, Fcc, RoHS, UN38.3, MSDS, ISO9001 |
| Overcharge Test |
Passed |
| Thermal Test |
Passed |
| Vibration Test |
Passed |
| Shock Test |
Passed |
| External Short Circuit Test |
Passed |
| Altitude Simulation Test |
Passed |
| Waterproof |
Not |
| Working Temperature |
0-60℃ |
| ChargingTemperature |
10-40℃ |
| Storage Temperature |
20~20°C(with in 1year)
20~30°C(with in 3month)
20~40°C(with in 1month)
20~50°C(with in 1week) |
| Cycle Life |
500 Cycles |
| Warranty |
18 Months |
*Specifications subject to change without notice.
\

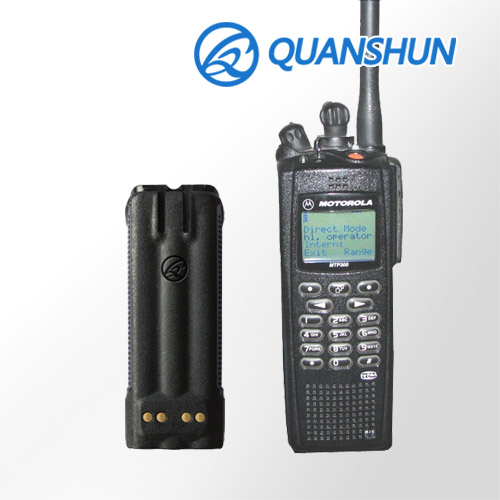

Fit in MTP300 MTP200 XTS5000 XTS3500 XTS3000 XT5300 XTS4250
Compatiable for charger: NTN7209 NTN1171
